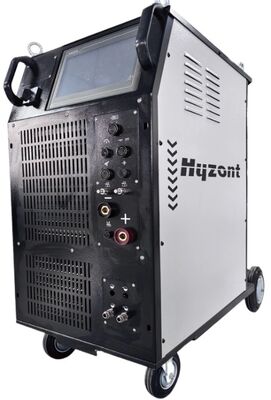

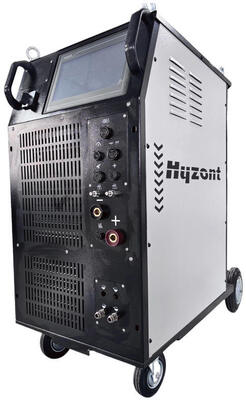

OBT-400A Integrated Water Cooled TIG Orbital Welding Power Source 400A IGBT Inverter
Rincian Produk
| Model: | OBT-400 | Jenis Produk: | Sumber daya las orbital TIG berpendingin air terintegrasi |
|---|---|---|---|
| Jenis catu daya: | Sumber listrik las busur inverter IGBT | Tegangan Listrik Utama: | 3x380V |
| arus pengelasan: | 10A-400A | Siklus Tugas: | 315A 100%; 400A 60% |
| Siklus Kerja: | 10 menit | Tegangan sirkuit terbuka: | 70V |
| Fluktuasi Tegangan Masukan: | 3x380V (-15%~+15%) | Frekuensi: | 50/60HZ |
| Tingkat Daya: | 21.5KVA | Kotak Distribusi yang Direkomendasikan: | 50KVA |
| Cos Phi / Efisiensi: | 0.98/78% | Kelas Isolasi: | F |
| Kelas Perlindungan: | IP21 | Lingkungan suhu: | -10~+40 derajatC |
| Suhu Penyimpanan: | -25~+55 derajatC | Tipe Pendingin: | Pendinginan udara |
| Tampilan Layar: | Layar sentuh 10 inci | Program yang Dapat Disimpan: | 200 |
| Bagian Pengelasan yang Dapat Dibagi: | 8 | Kepala pompa air: | 30m/0,3MPa |
| Kapasitas Tangki Air: | 15L | Dimensi P/L/T: | 980x475x1020mm |
| Berat: | 108Kg | Standar manufaktur: | GB15579.1-2024 |
| Klasifikasi EMC: | A | Dimensi Pengepakan: | 900x650x1020mm |
| Berat Kotor: | 137KG | Pencetak: | Pilihan |
| Menyoroti |
Water Cooled TIG Welding Source,400A Orbital Welding Power Source,10 Inch Touch Screen Welder |
||
Deskripsi Produk
Sorotan Produk
OBT-400A sumber daya pengelasan orbital TIG berpendingin air terintegrasi untuk pengelasan tabung-ke-tabung semua posisi. Inti inverter IGBT 400A, 3x380V, HMI layar sentuh 10 inci, kontrol PLC, kontrol arus yang presisi, rotasi, pengumpanan kawat, panjang busur tenun, gas pelindung, dan udara bertekanan.
Mesin Pengelasan Pipa Baja Bergelombang 10-500mm OD Pipe Welding Machine
Stainless steel pipe circular seam welding machine 10-500 mm OD pipe welding machine The equipment features a compact and intensive design with a small footprint and flexible operation. It is suitable for circumferential welding of pipes made of carbon steel, stainless steel, titanium alloy, ...
Bellows Joint TIG Mesin Las
Bellows Joint TIG Welding Machine SS304 Elbow Flange Pipe Welding Machine pipe to pipe welding machine bellows joint TIG welding machine SS304 elbow joint welding machine flange pipe welding machine The equipment features a compact and intensive design with a small footprint and flexible operation. ...
Mesin Pengelasan Cladding TIG Multifunctional Hot Wire
主要配套设备 Key Parts 德国EWMTetrix452进口焊接电源 German EWM Tetrix 452 welding power source 德国EWMTetrix200Hotwire热丝焊接电源； German EWM Tetrix 200 Hot Wire power source MHCJ2015S型定制高精度操作机； MHCJ2015S customized CNC linkage high-precision welding column and boom MH-Z5T回转平台配置紧密三爪卡盘 MH-Z5T rotary platform equipped ...

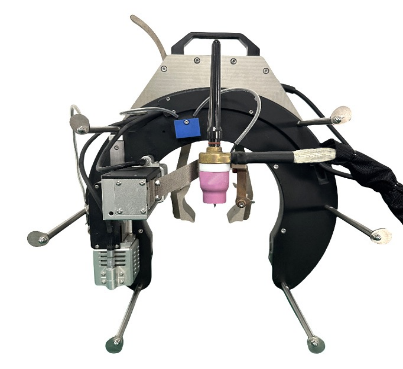

Mesin Pengelasan Orbital Berkualitas Tinggi Sumber Daya Listrik 360 ° Mesin pengelasan busur TIG berputar
High Power Rating Durable Orbital Welding Machine Electric Power Source 360° rotated TIG arc welding machine Product Description: The Hyzont MWF-40, MWF-80 and MWF-120 enclosed orbital welding heads are designed for automatic TIG/GTAW (autogenous, no wire feeding) butt welding of tubes and pipes. ...
