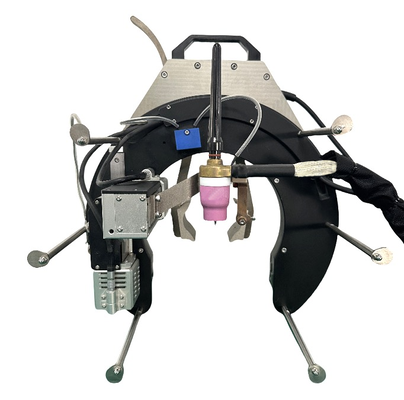

Automatic Pipe Orbital Welding Torch HZG-76 All Position Tube to Tubesheet Weld Head

Nama Merek: HYZONT
Nomor Model: HZG-76
Tempat Asal: Shanghai, Tiongkok
Sertifikasi: GB15579.1-2024
Jumlah Pesanan Minimum: 1 Set
Harga: Price on Request - please contact us for the latest quotation
Kemampuan Pasokan: 20 set per bulan
Waktu Pengiriman: 20 hari
Ketentuan Pembayaran: Deposit 30%, saldo 70% sebelum pengiriman
Kemasan standar: Kasus Kayu
Tag

peralatan pengelasan pipa

Peralatan pengelasan pipa

Rincian Produk

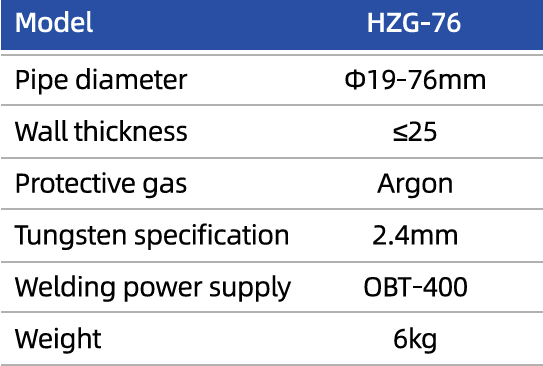

Model: HZG-76 Jenis Produk: Obor las orbital pipa otomatis

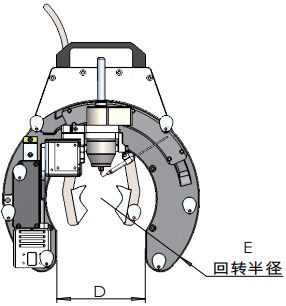

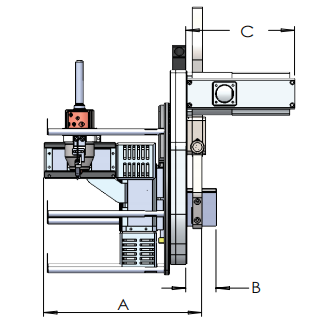

Kisaran Diameter Pipa: 19-76mm Dimensi A: 125mm
Dimensi B: 35mm Dimensi c: 134mm
Dimensi d: 82mm Dimensi f: 123,3 mm
Bahan Tubuh: Paduan Aluminium Menjepit: Penyesuaian stepless tipe kaliper
Penularan: Transmisi gigi bebas serangan balik Pendinginan: Sirkulasi Air Pendingin
Modus pengelasan: Pipa tidak bergerak, obor berputar Menenun: Tenun listrik dan osilasi panjang busur
Metode Pengelasan: Pengelasan autogenous dan pengelasan pengumpanan kawat Kawat Dia: 0.8/1.0/1.2mm

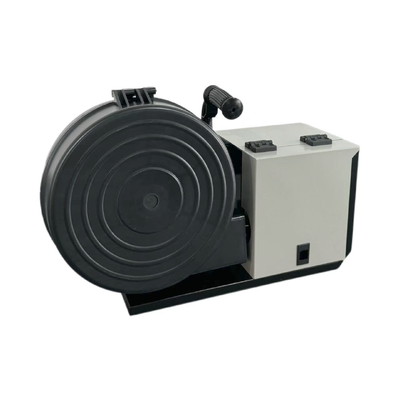

Ukuran Pengumpan Kawat: 615x400x245mm Berat pengumpan kawat: 14kg
Izin Pemasangan: 0-0.5mm Sudut Alur Baja Karbon: &gt;=37 derajat (ketebalan&gt; 2,5 mm)
Sudut Alur Baja Tahan Karat: &gt;=45 derajat (ketebalan&gt; 2,5 mm) Aplikasi: Sambungan pipa ke pipa, pipa ke siku, sambungan tabung ke tubesheet
Menyoroti

All Position Orbital Welding Torch

,

Tube to Tubesheet Welding Head

,

19-76mm Pipe Welding Torch

Deskripsi Produk

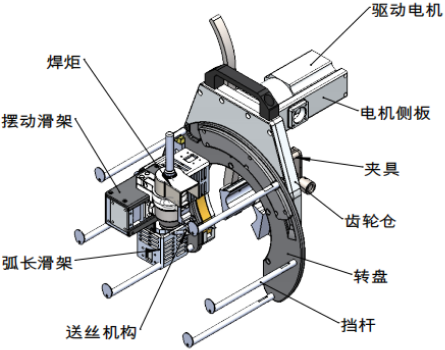

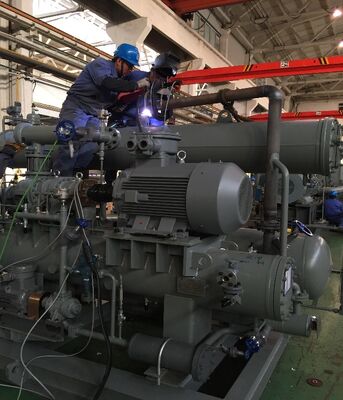

HZG-76 Automatic Pipe Orbital Welding Torch The HZG-76 is an all-position tube-to-tubesheet automatic orbital welding torch designed for medium and thick-wall carbon steel and stainless steel pipes from 19mm to 76mm. The pipe stays stationary while the torch rotates, so it is widely applied to on-site installation of pipe-to-pipe and pipe-to-elbow joints. Why Choose the HZG-76 Orbital Welding Torch Three core modules - rotation system, clamp device and transmission system

Sorotan Produk

Obor las orbital pipa otomatis semua posisi HZG-76 untuk pipa 19-76mm dan sambungan tabung-ke-tubesheet. Bodi paduan aluminium, penjepit stepless tipe kaliper, transmisi roda gigi bebas serangan balik, tenun listrik dan osilasi panjang busur, obor berpendingin air, pengelasan autogenous dan pengumpanan kawat.
