Large Diameter Round Pipe Plasma Profile Cutting Machine 3D Bevel Torch 6000Kg Loading

Nama Merek: HYZONT
Nomor Model: CNCXG1200-V
Tempat Asal: Shanghai, Tiongkok
Sertifikasi: CE / ISO 9001
Jumlah Pesanan Minimum: 1 Set
Harga: CNY 835,000 FOB Shanghai
Kemampuan Pasokan: 10 Set Per Bulan
Waktu Pengiriman: Dalam waktu 60 hari terhadap pembayaran di muka
Ketentuan Pembayaran: 30% terhadap PI, saldo 70% sebelum pengiriman
Kemasan standar: Kotak kayu, dikirim dengan satu kontainer 20GP penuh
Tag

Cnc router plasma combo

Mesin pemotong plasma CNC

Rincian Produk

Tipe Mesin: Mesin pemotong plasma profil pipa bulat CNC 5 sumbu Model: CNCXG1200-V
Diameter Pipa (OD): 500-1050mm Panjang Pipa: 12000mm
Mode pemotongan: Pemotongan Plasma Ketebalan pemotongan plasma: 1-25mm (pemotongan talang 22mm)
Sumber Daya Plasma: Sumber plasma daya tinggi 12000W Plasma pemotong obor: Obor pemotongan profil plasma 3D
Sensor Ketinggian: Sensor ketinggian fotolistrik, respons 0,1 detik Sistem Pengendalian: Sistem kontrol CNC tipe bus (bus lapangan Ethernet industri)
Sistem Operasi: Sistem operasi kontrol industri Menampilkan: Layar sentuh tahan ledakan 19 inci
Perangkat lunak: Perangkat lunak kontrol versi bahasa Inggris Bus Lapangan: Bus lapangan Ethernet Industri
Nomor sumbu: Lebih dari 6 Modul I/O: Modul I/O Bus
Periferal: USB x4, RS232/485, Ethernet Pipa Chuck: Chuck konsentris 3 rahang manual dengan naik/turun otomatis
Kapasitas Pemuatan Maks: 6000kg Kecepatan Putar Pipa: 0-10000mm/mnt
Kesalahan Pindah: 0.2mm/1000mm Berat Bersih: 5000KG
Motor Servo: Servo AC presisi tinggi Kotak Perlengkapan: Gear box presisi yang diimpor
pendingin air: pendingin air industri
Menyoroti

3D Plasma Profile Cutting Torch

,

3 Jaws Concentric Pipe Chuck

,

6000Kg Pipe Loading Capacity

Deskripsi Produk

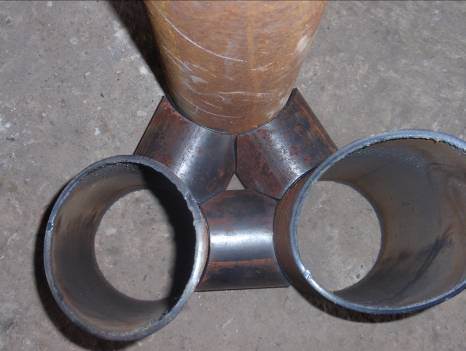

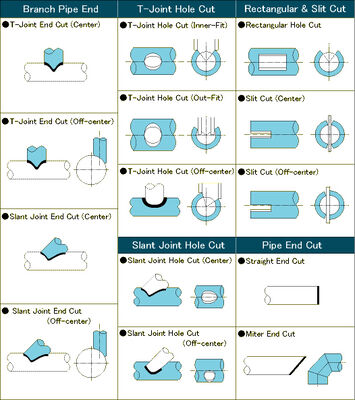

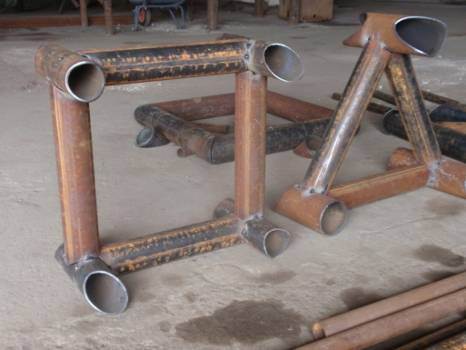

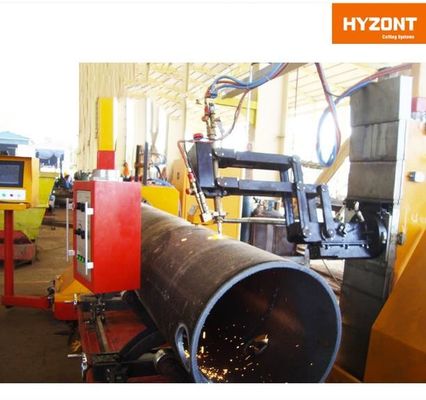

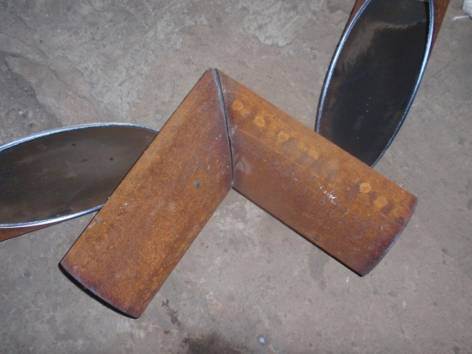

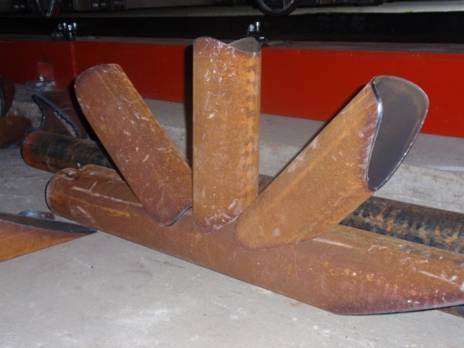

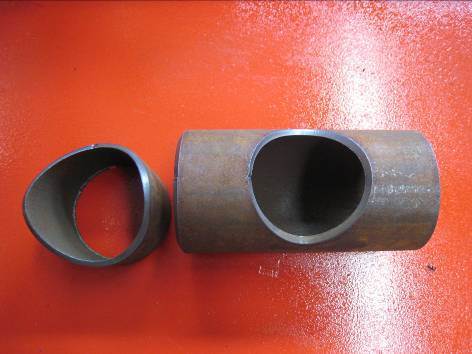

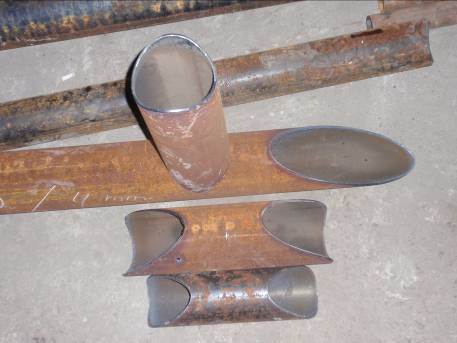

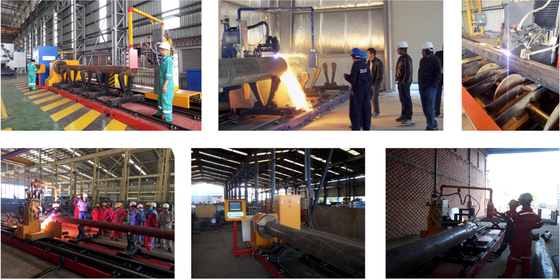

Large Diameter CNC Round Pipe Plasma Profile Cutting Machine This round pipe profile plasma cutting machine is a 5-axis CNC system designed for cutting circular pipe in diameters from 500mm to 1050mm and lengths up to 12000mm. With a 12000W high power plasma source, a 3D plasma profile cutting torch and a photoelectric height sensor, it performs straight and bevel cutting, hole cutting, T-joint, multi-branch and elbow (shrimp joint) profiles on carbon steel, stainless steel

Sorotan Produk

Mesin pemotong profil plasma pipa bulat berdiameter besar, OD pipa 500-1050mm, sumber plasma 12000W dengan obor bevel 3D, chuck konsentris 3 rahang, pemuatan 6000Kg dan presisi 0,2mm/1000mm untuk pemotongan sambungan-T, lubang, multi-cabang, dan siku.
