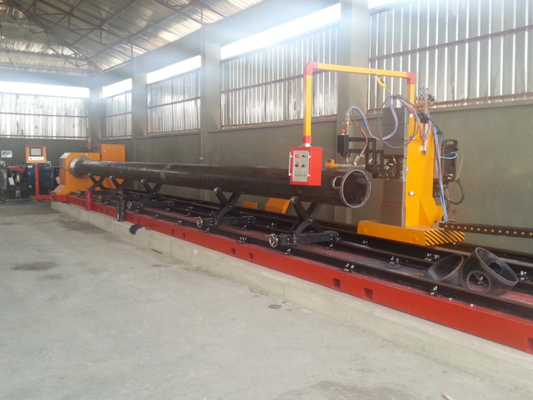

CNC 5 Axis Round Pipe Plasma Cutting Machine CNCXG1200-V 12000W 500-1050mm Profile Cutter
Rincian Produk
| Tipe Mesin: | Mesin pemotong plasma profil pipa bulat CNC 5 sumbu | Model: | CNCXG1200-V |
|---|---|---|---|
| Diameter Pipa (OD): | 500-1050mm | Panjang Pipa: | 12000mm |
| Mode pemotongan: | Pemotongan Plasma | Ketebalan pemotongan plasma: | 1-25mm (pemotongan talang 22mm) |
| Sumber Daya Plasma: | Sumber plasma daya tinggi 12000W | Plasma pemotong obor: | Obor pemotongan profil plasma 3D |
| Sensor Ketinggian: | Sensor ketinggian fotolistrik, respons 0,1 detik | Sistem Pengendalian: | Sistem kontrol CNC tipe bus (bus lapangan Ethernet industri) |
| Sistem Operasi: | Sistem operasi kontrol industri | Menampilkan: | Layar sentuh tahan ledakan 19 inci |
| Perangkat lunak: | Perangkat lunak kontrol versi bahasa Inggris | Bus Lapangan: | Bus lapangan Ethernet Industri |
| Nomor sumbu: | Lebih dari 6 | Modul I/O: | Modul I/O Bus |
| Periferal: | USB x4, RS232/485, Ethernet | Pipa Chuck: | Chuck konsentris 3 rahang manual dengan naik/turun otomatis |
| Kapasitas Pemuatan Maks: | 6000kg | Kecepatan Putar Pipa: | 0-10000mm/mnt |
| Kesalahan Pindah: | 0.2mm/1000mm | Berat Bersih: | 5000KG |
| Motor Servo: | Servo AC presisi tinggi | Kotak Perlengkapan: | Gear box presisi yang diimpor |
| pendingin air: | pendingin air industri | ||
| Menyoroti |
5 Axis Pipe Plasma Cutting,12000W Plasma Power Source,500-1050mm Pipe Diameter Capacity |
||
Deskripsi Produk
Sorotan Produk

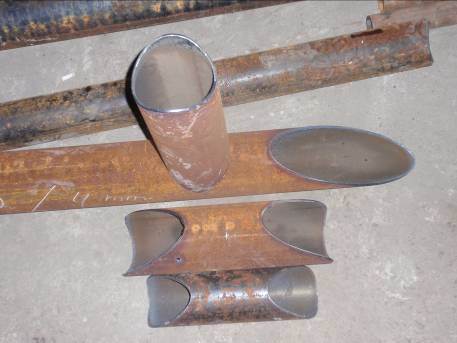

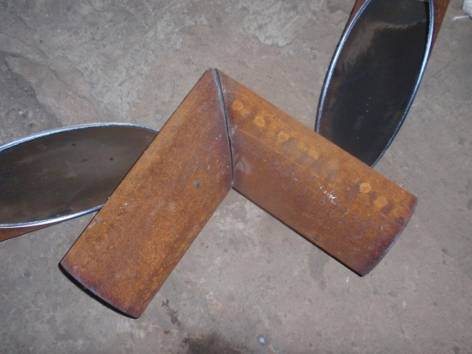

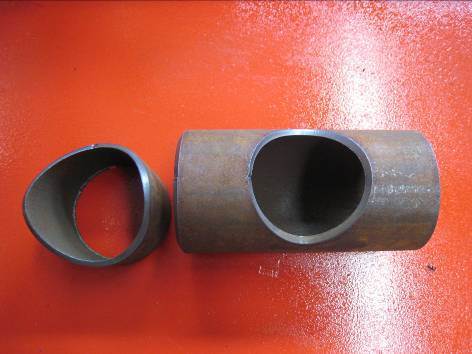

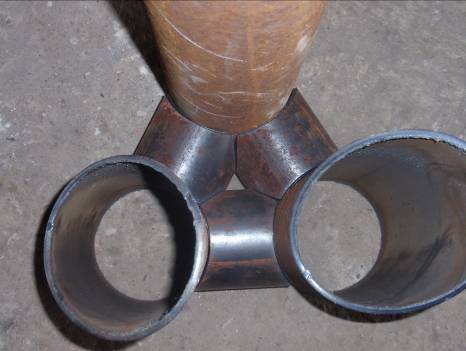

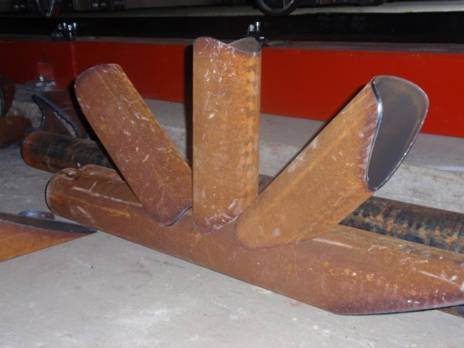

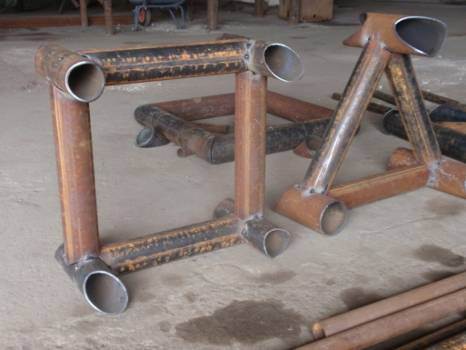

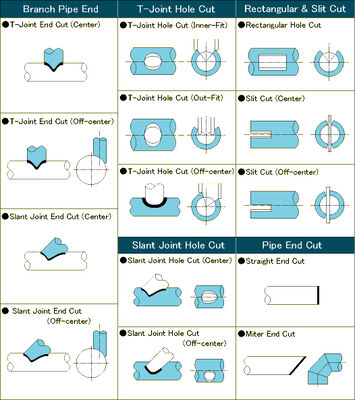

Mesin pemotong plasma pipa bulat CNC 5 sumbu CNCXG1200-V, diameter kerja 500-1050mm, sumber plasma 12000W, panjang pipa 12000mm, obor profil plasma 3D untuk pemotongan profil pipa 1-25mm.
