Tube-To-Tube MIG Automatic Circular Seam Welding Machine 50-600mm OD 2000mm Length 500kg Capacity

Nama Merek: HYZONT
Nomor Model: GFL-500
Tempat Asal: Shanghai, Tiongkok
Sertifikasi: CCC
Jumlah Pesanan Minimum: 1 Set
Harga: USD 15000-25000 / Set
Kemampuan Pasokan: 20 set per bulan
Waktu Pengiriman: 15-30 hari setelah pembayaran
Ketentuan Pembayaran: L/C,T/T,Western Union
Kemasan standar: Kasus Kayu
Tag

3000W Mesin Pemotong Bed Cleaner

5m/Min Laser Cutting Slag Cleaner

Mesin pengelasan jahitan melingkar otomatis

Rincian Produk

Bahan: CS/SS Proses Pengelasan: Gas MIG terlindung
OD yang berfungsi: Phi 50 - Phi 600mm Panjang kerja: &lt;= 2000mm
Ketebalan kerja: &lt;= 20mm Berat badan bekerja: &lt;= 500kg

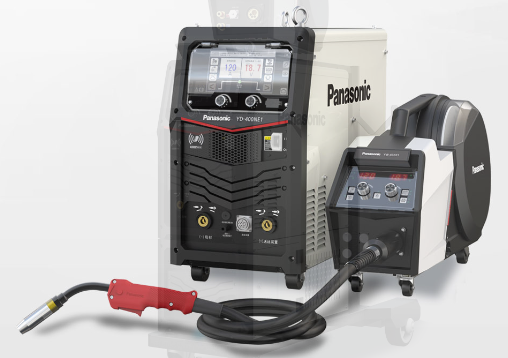

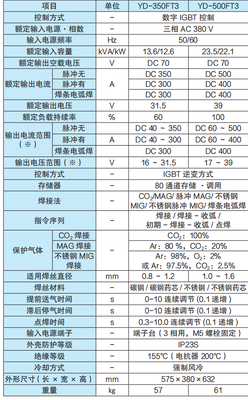

Bentuk Las: Sambungan pipa ke pipa Sumber Daya Pengelasan: Panasonic YD500FT3
Sistem Pengendalian: PLC + Layar Sentuh
Menyoroti

MIG Plus Wire Welding Process

,

Panasonic YD500FT3 Welding Power Source

,

Tube To Tube Butt Joint

Deskripsi Produk

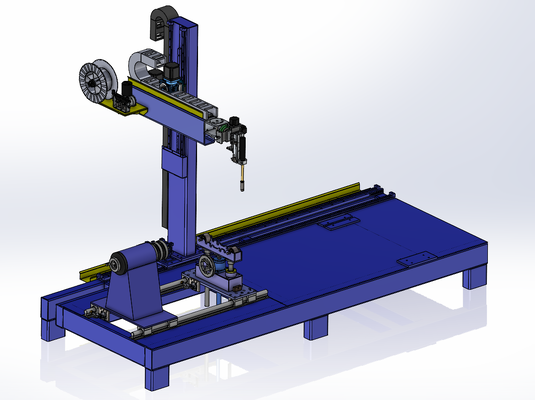

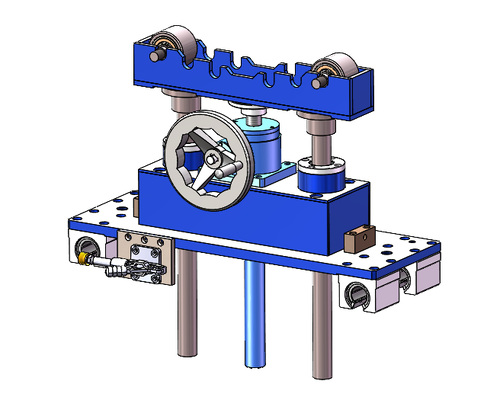

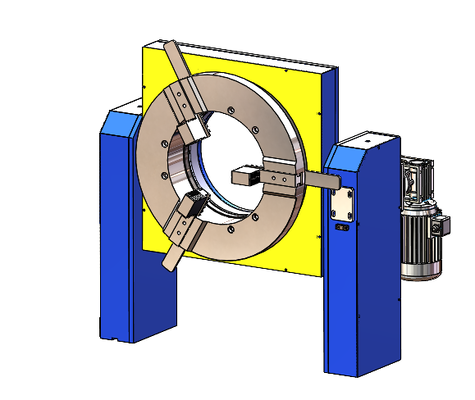

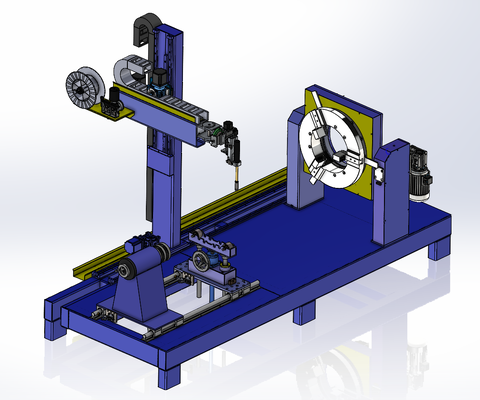

Tube-To-Tube MIG Automatic Circular Seam Welding Machine This dedicated circular seam welding system performs pipe-to-pipe butt joint welding with a MIG + wire welding process. It integrates a special welding positioner, a lifting roller frame, a welding roller frame, a welding head, a MIG welding power source and a PLC control system into one compact unit with a low center of gravity for stable operation. Working Range Material CS / SS Welding Process MIG gas shielded

Sorotan Produk

Mesin las jahitan melingkar otomatis MIG tube-to-tube, OD 50-600mm, panjang hingga 2000mm, ketebalan hingga 20mm, beban 500kg, dengan sumber daya Panasonic YD500FT3 dan kontrol layar sentuh PLC.
